Ubuntu22.04 Initialization Settings (Static IP and Modify SSH Port Number)

Recently, when setting up the MC server, errors often occur. In order to control variables and troubleshoot environmental problems, Ubuntu needs to be reinstalled frequently. After installation, the server IP needs to be fixed, the SSH port number needs to be modified, etc., which are recorded here for reference

Set static IP

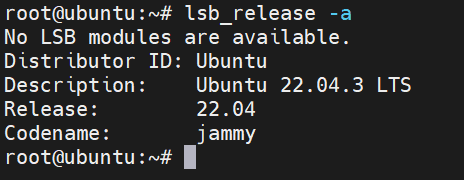

First check the system information

lsb_release -a

View the configuration file

ls /etc/netplan/

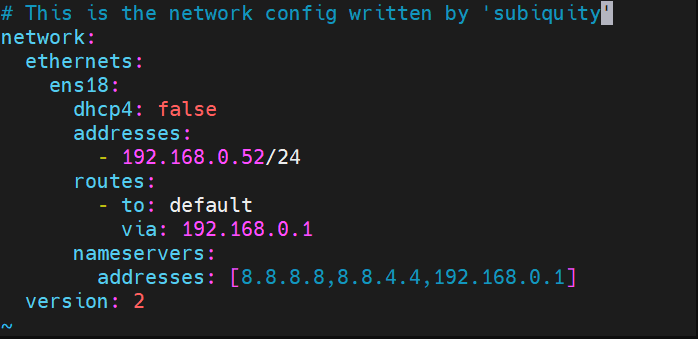

Edit File

vi /etc/netplan/00-installer-config.yaml

Pay attention to the indentation format

# This is the network config written by 'subiquity'
network:
  ethernets:
    ens18:                                        # 网卡名
      dhcp4: false                                # 关闭dhcp
      addresses:
        - 192.168.0.52/24                         # 本机IP地址及子网掩码
      routes:
        - to: default
          via: 192.168.0.1                        # 网关地址
      nameservers:
        addresses: [8.8.8.8,8.8.4.4,192.168.0.1]  # DNS服务器地址
  version: 2

Save after editing and apply the configuration file

netplan apply

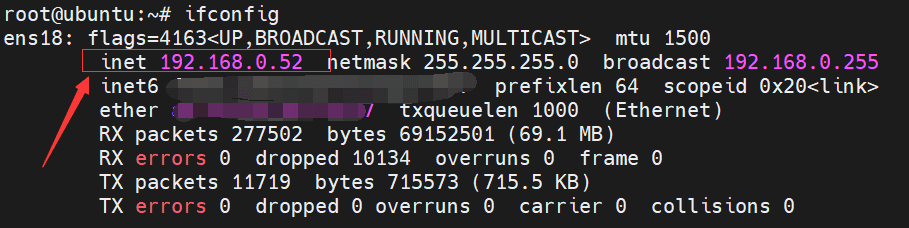

Verify the modification

ifconfig

Modify the SSH port number

The default port number for ssh connection is 22. Using the default port is easy to be scanned and attacked. It is recommended to change it to another port

Edit the configuration file

vi /etc/ssh/sshd_config

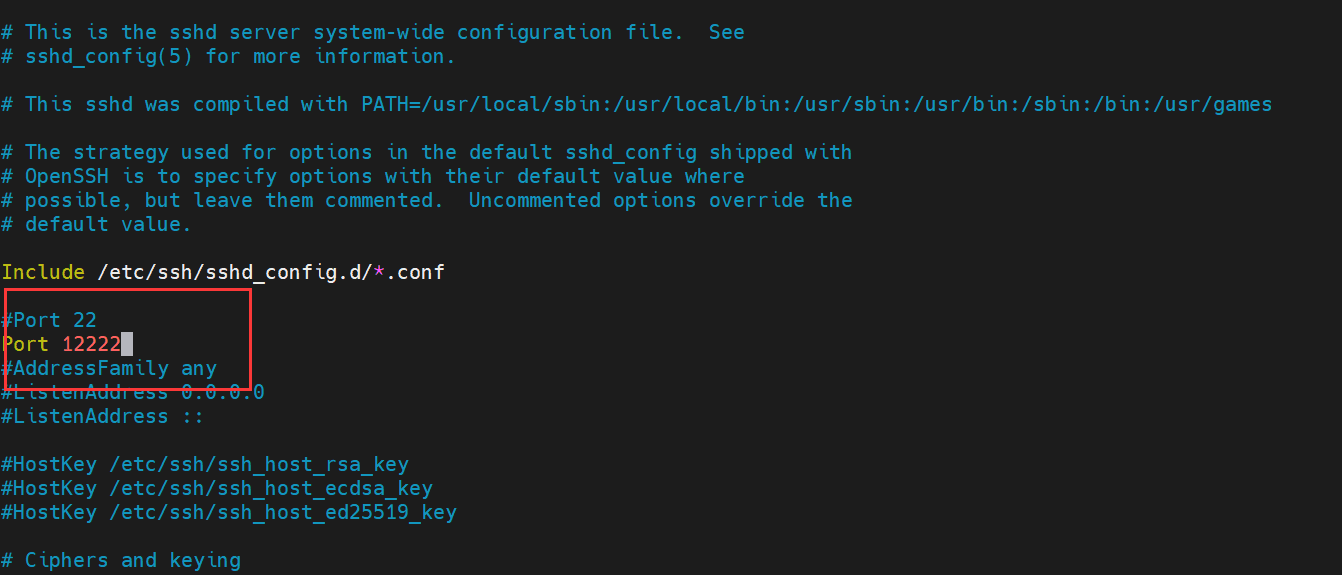

Port 22 of the 22.04 version is commented out by default. Add a line below, where 12222 is the port number you want to use

Port 12222

Save and exit and restart the service

systemctl restart sshd

It should be noted that the firewall needs to allow the corresponding port

# If ufw is used
ufw allow 12222/tcp

# If iptables is used, iptables needs to be persistent, otherwise the rules will become invalid when the next restart
iptables -I INPUT -p tcp --dport 12222 -j ACCEPT
